Beskrivelse

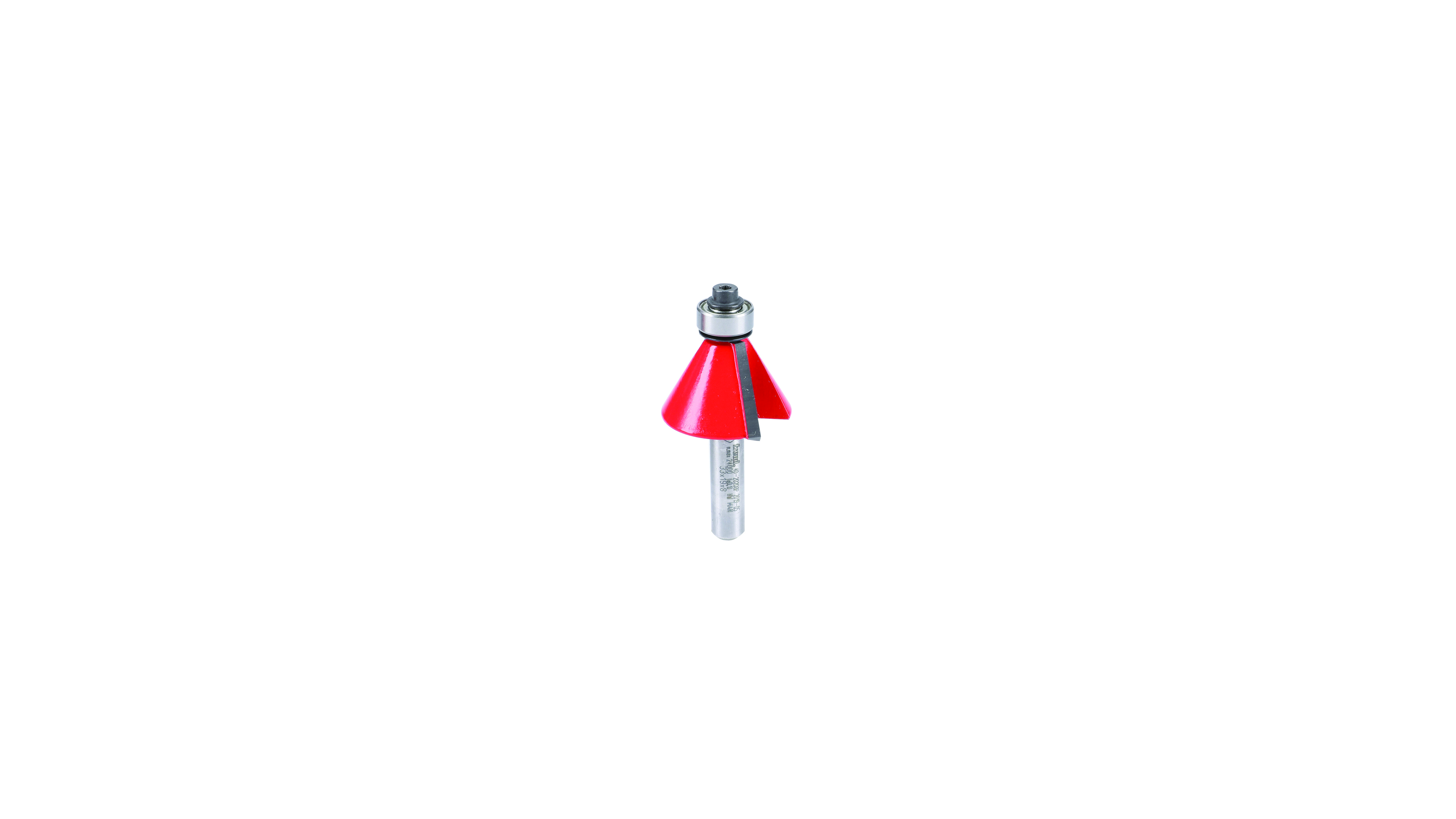

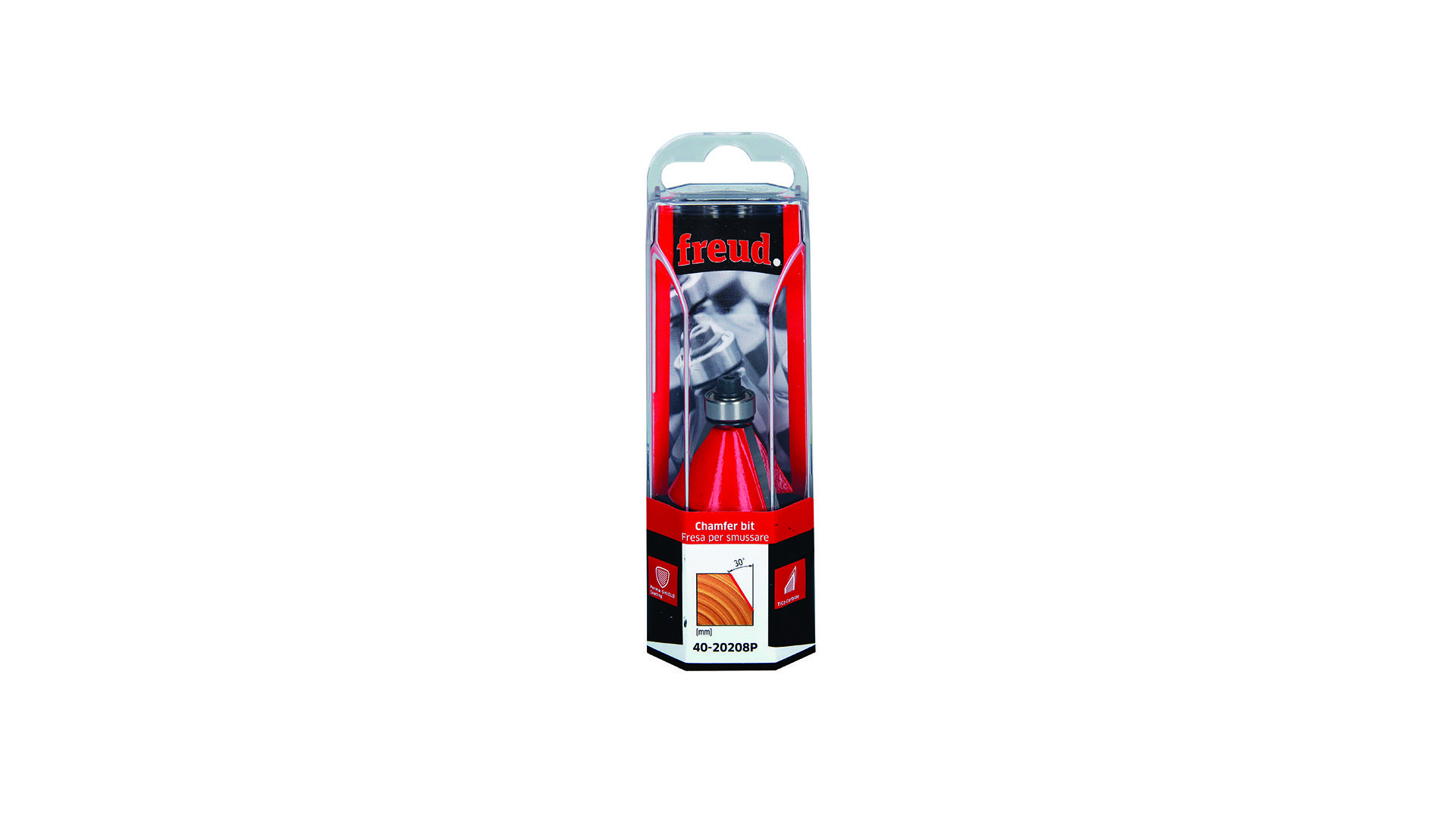

Freud Chamfer Bit 8 mm skaft 33 x 30 ° (diameter x vinkel)
Detaljer
- Merke
- Freud
- Produsentens produktnummer
- 40-20208P
- EAN
- 8025331322838
Spesifikasjoner
-
Egenskap Verdi Cutting Diameter (D mm) 33 Cutting Height (h mm) 19 Overall Height (H mm) 61,6 Shank (A mm) 8 R1 Radius 0 R2 Radius 0 R3 Radius 0 Bearing Diameter (C mm) 12,7 Number of teeth Z 2 α 30° Max RPM 1/min 16000 EAN/ Barcode 8025331322838 Country of origin Italy LU Dimensions Length (mm) 224 LU Dimensions Width (mm) 92 LU Dimensions Height (mm) 128
