Beskrivelse

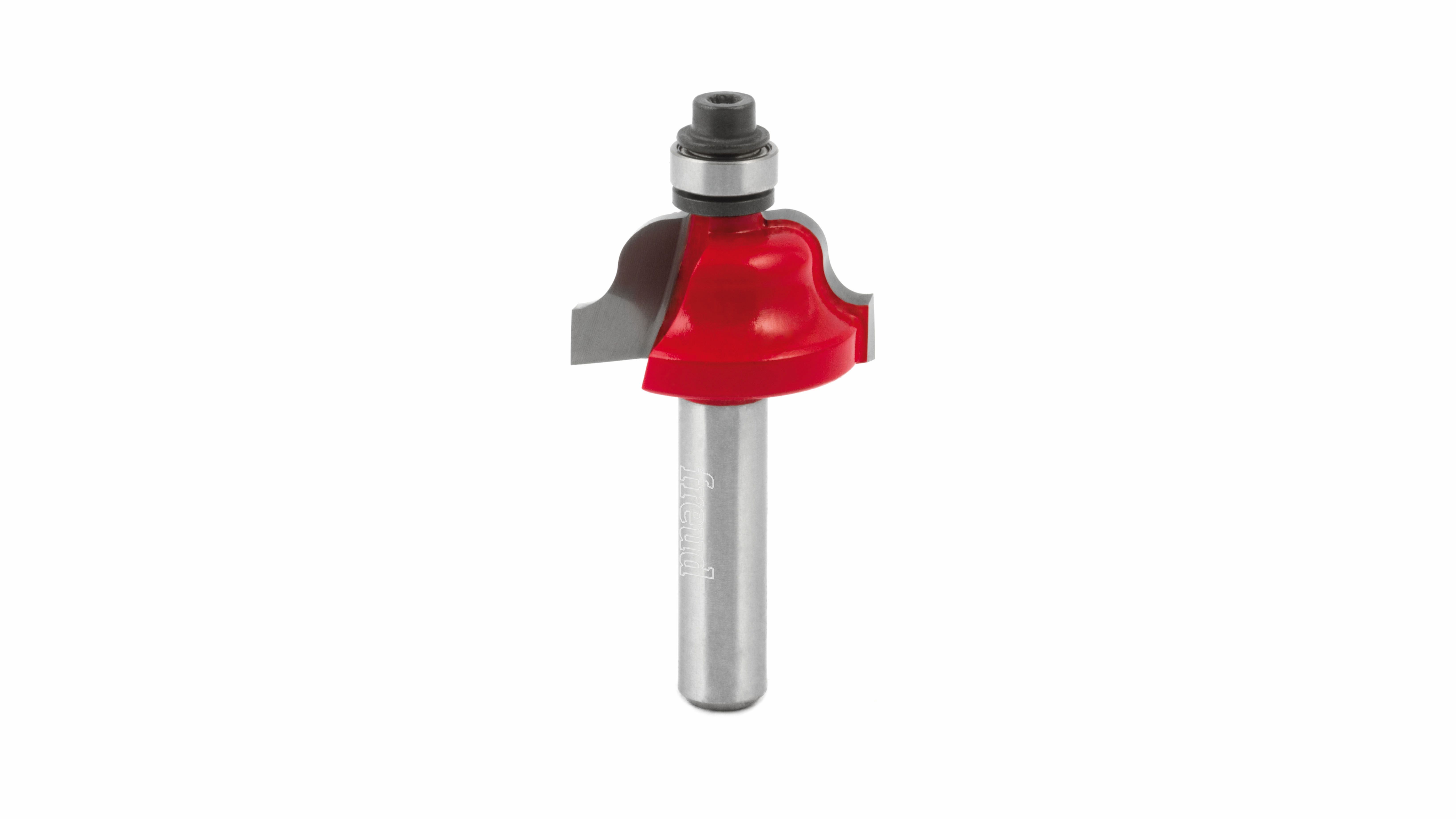

Freud Roman Ogee Bit 8 mm skaft 4 (Radius)
Detaljer
- Merke
- Freud
- Produsentens produktnummer
- 38-10008P
- EAN
- 8025331478351
Spesifikasjoner
-
Egenskap Verdi Cutting Diameter (D mm) 27 Cutting Height (h mm) 13,3 Overall Height (H mm) 55,3 Shank (A mm) 8 R1 Radius 4 R2 Radius 0 R3 Radius 0 Bearing Diameter (C mm) 9,53 Number of teeth Z 2 α 0 Max RPM 1/min 18000 EAN/ Barcode 8025331478351 Country of origin Italy LU Dimensions Length (mm) 224 LU Dimensions Width (mm) 92 LU Dimensions Height (mm) 128
