Beskrivelse

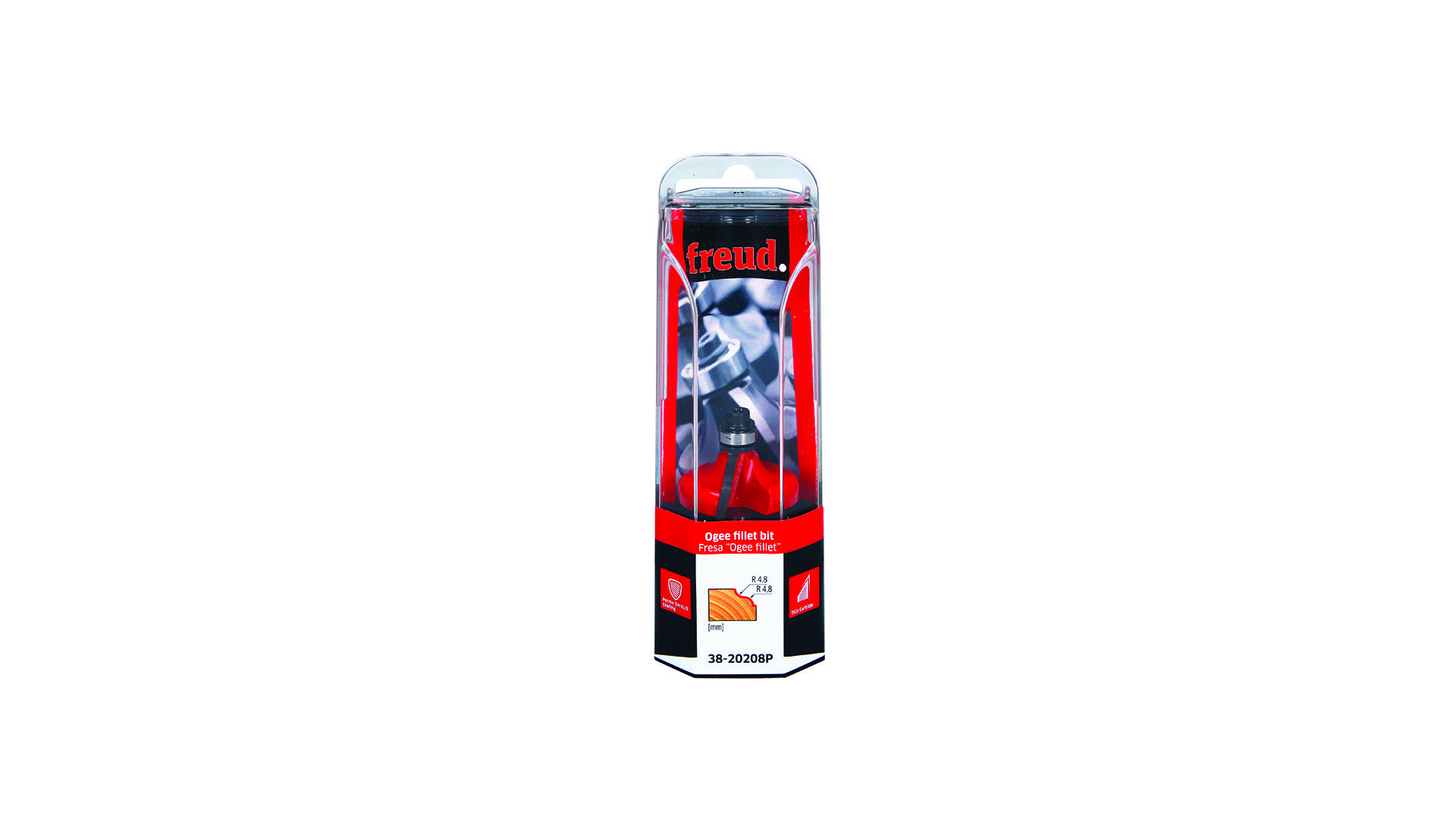

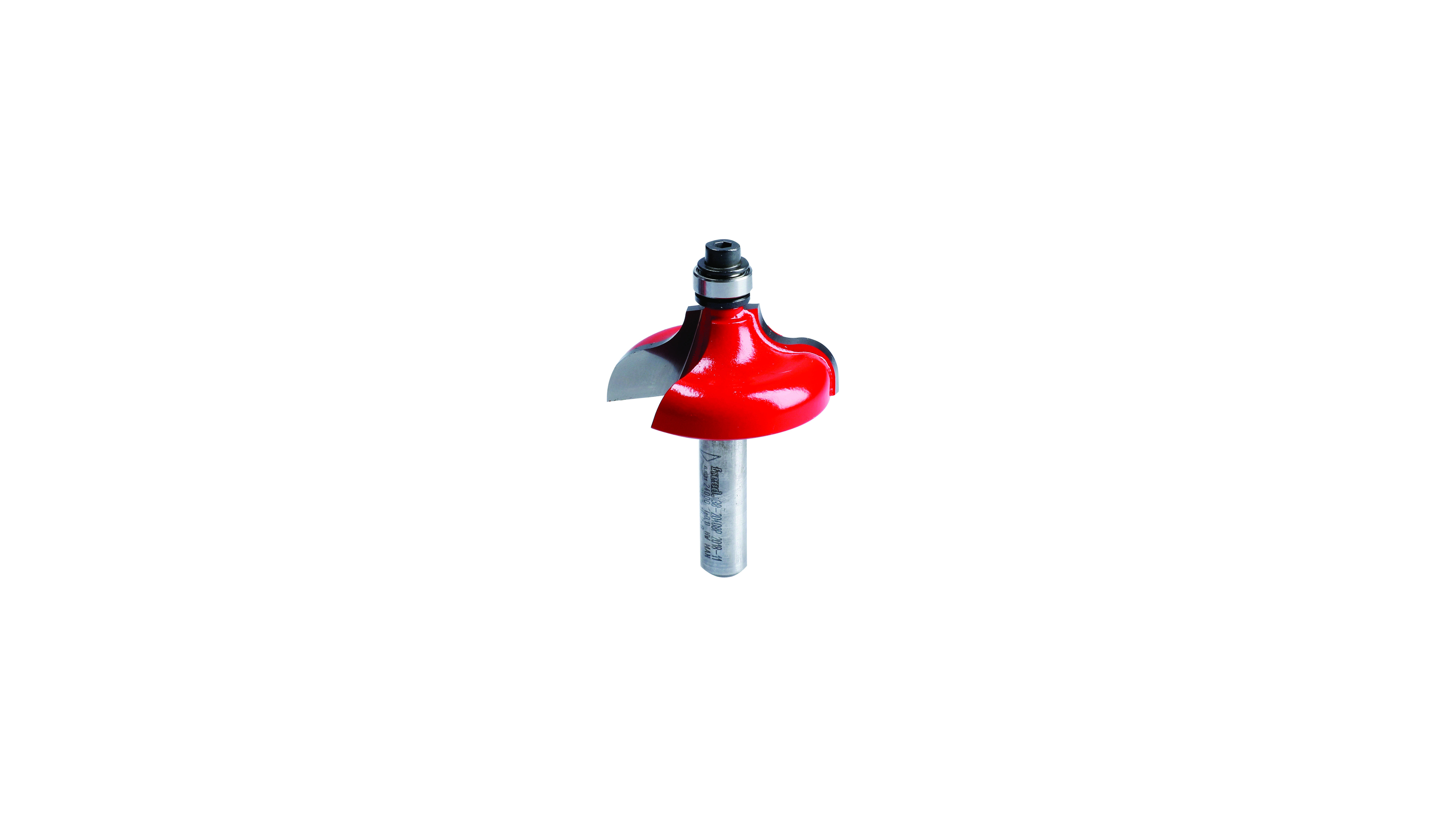

Freud Ogee Fillet Bit 8 mm skaft 4.8 (Radius)
Detaljer
- Merke
- Freud
- Produsentens produktnummer
- 38-20208P
- EAN
- 8025331478375
Spesifikasjoner
-
Egenskap Verdi Cutting Diameter (D mm) 31,75 Cutting Height (h mm) 12,2 Overall Height (H mm) 53,9 Shank (A mm) 8 R1 Radius 4,8 R2 Radius 0 R3 Radius 0 Bearing Diameter (C mm) 9,53 Number of teeth Z 2 α 0 Max RPM 1/min 18000 EAN/ Barcode 8025331478375 Country of origin Italy LU Dimensions Length (mm) 224 LU Dimensions Width (mm) 92 LU Dimensions Height (mm) 128
